SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Condition: New

Hign-concerned Chemical: None

Model Number: Charging Protection Module

Origin: Mainland China

Type: Module

Product Selling Points:
1. It is fully compatible with multiple fast charging protocols such as QC, PD, PPS, SCP, VOOC, etc., meeting the charging needs of the vast majority of electronic devices on the market. With it in hand, you don't have to worry about charging.
2. It supports the MPPT function and can be connected to solar panels for charging.
3. It has efficient automatic step-up and step-down switching. There's no need to worry about the phone being damaged by overcharging due to high battery voltage. The automatic switching between PWM and PSM modes realizes efficient step-up and step-down.
4. The product supports various protection mechanisms, such as over-current/over-voltage/short-circuit/over-temperature protection, making it safer and more reliable to use.
5. Not only does it have fast output charging, but its own charging is also rapid. It supports PD bidirectional fast charging, greatly shortening the self-charging time and improving usability.
6. It features large-capacity solid-state capacitor filtering with low ripple output. The Vpp of the Type-C port is as low as 6 - 9mV, which can protect electronic devices more effectively.
7. Specially designed for DIY enthusiasts, it provides a clear circuit layout and markings, is easy to assemble and debug, suitable for personal customized power bank projects and meets personalized needs.

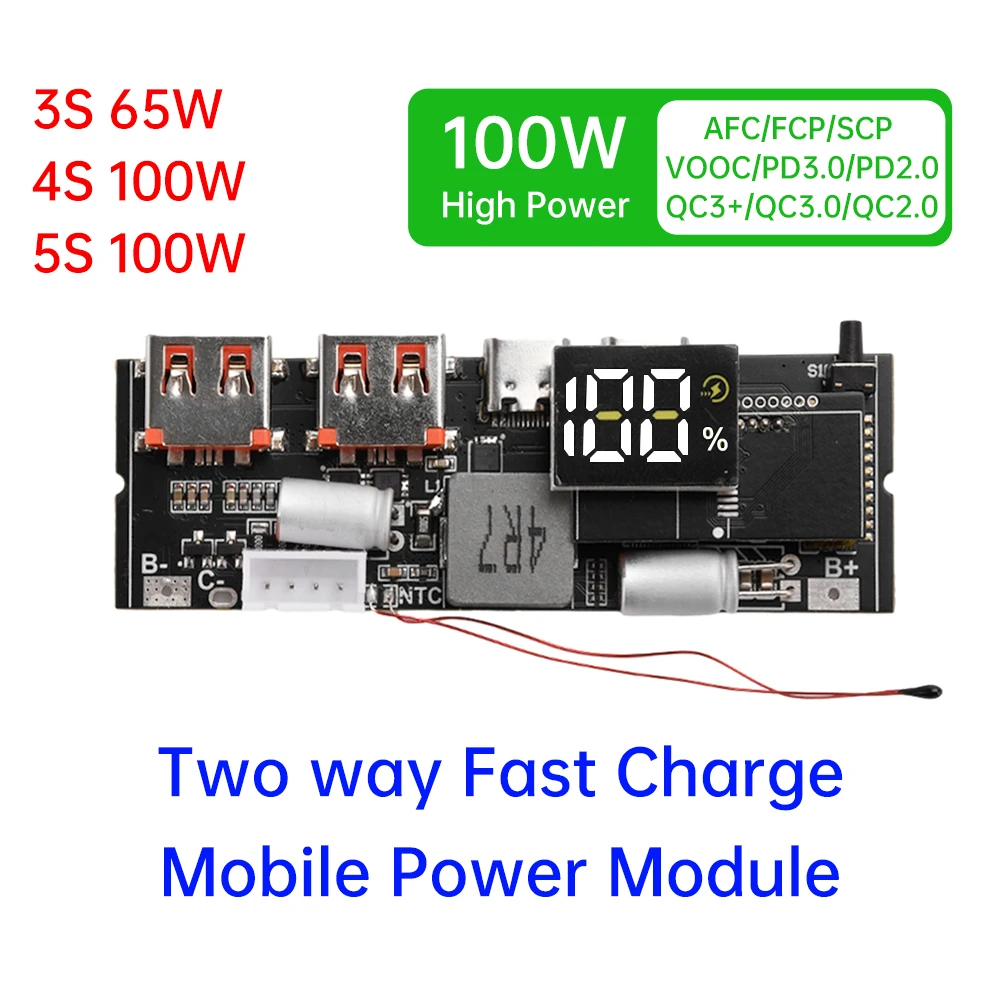

Product Parameters:

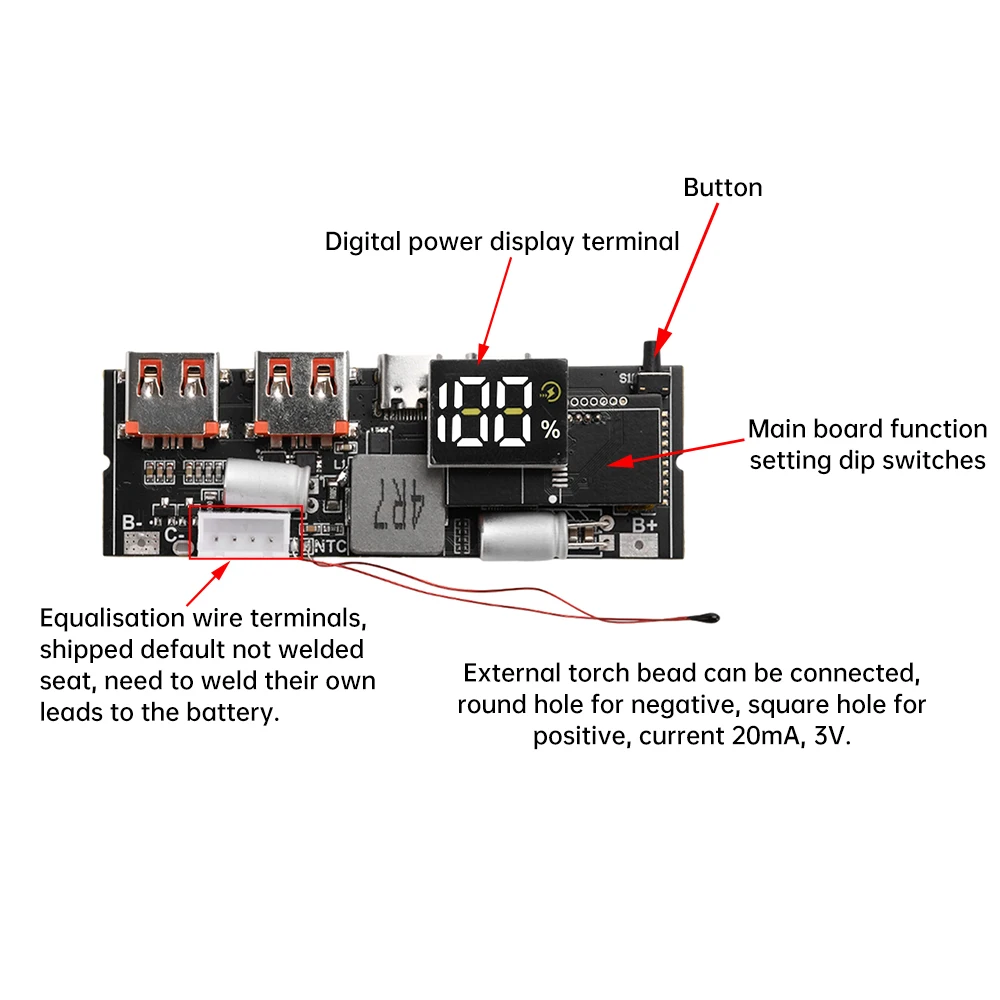

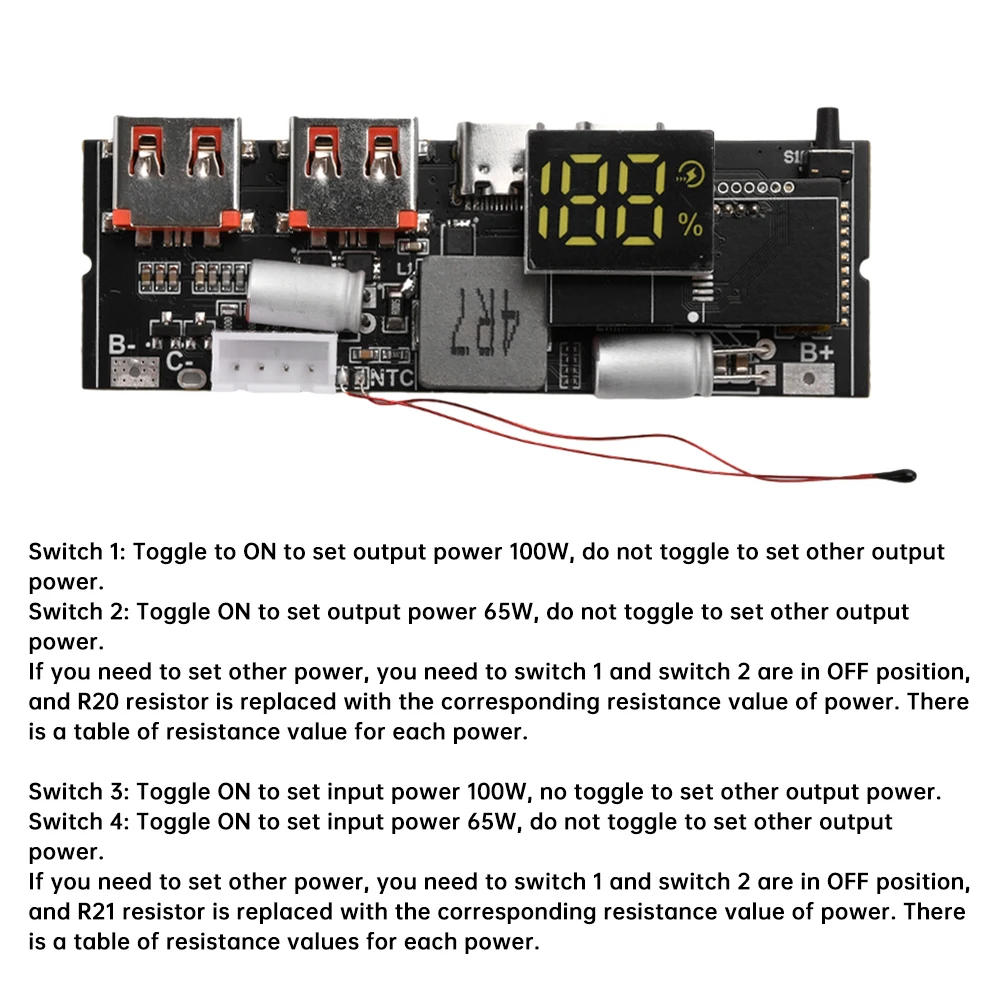

The motherboard has 4 USB ports by default, namely Type-C1, Type-C2, Type-A1, and Type-A2.
Type-C1 and Type-C2 support AFC/FCP/SCP/PD3.1 input protocols and support PPS/PD3.1/UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols.
Type-A1/Type-A2 support UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols.

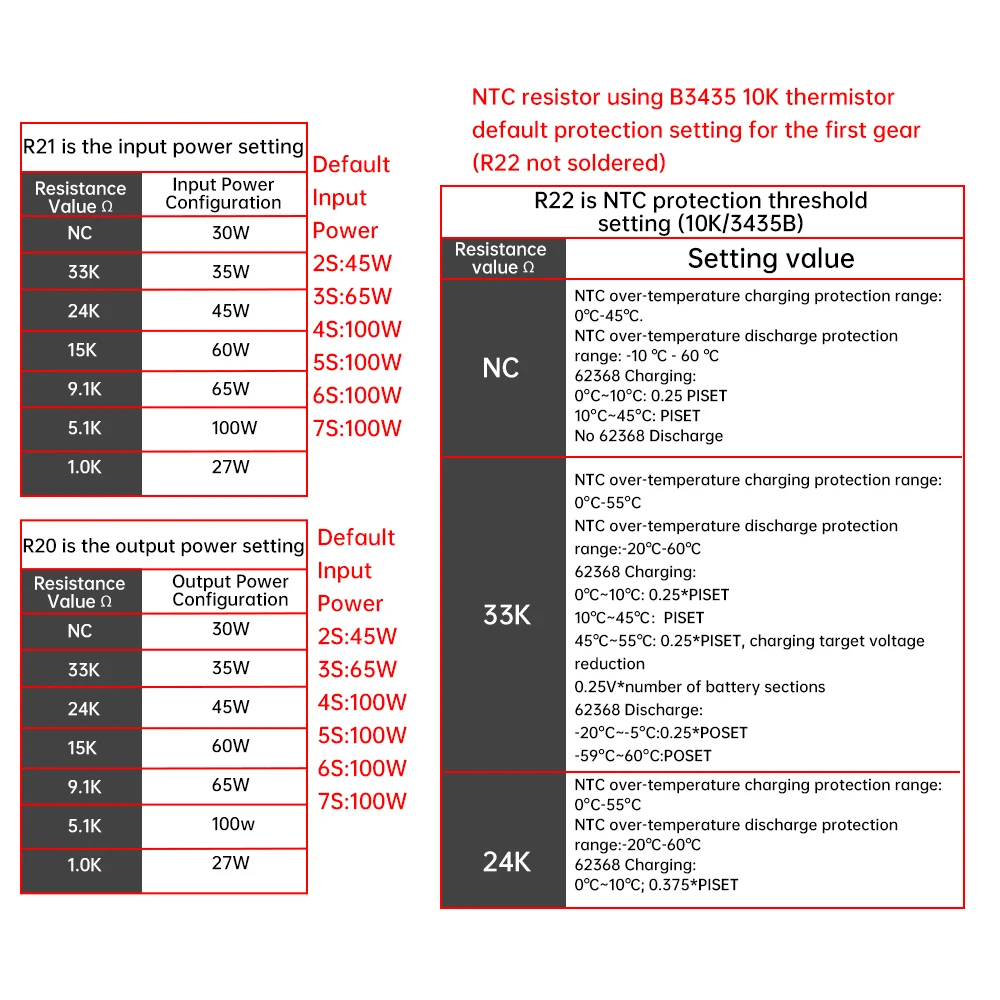

Voltage, Current and Power:
PPS/PD3.1: 20V@5A, 3.3V - 21V@5A, Maxin100W/Maxout60W
UFCS: 3.4 - 21V@5A, Maxin100W/Maxout60W
QC2.0: 5V3A/9V3A/12V2.8A/20V1.5A
QC3.0: 3.6V - 20V@200mV/step, 5V@3A/9V@3A/12V@2.8A/20V@1.5A
QC3+: 3.6V - 20V@20mV/step, 5V@3A/9V@3A/12V@2.8A/20V@1.5A
AFC: 5V3A/9V3A/12V2.8A
FCP: 5V3A/9V3A/12V2.8A
SCP: OUT 3.3V - 12V, IN 5V/9V/10V/12V, supports 10V4A
PE1.1: 5V/7V/9V/12V
PE2.0: 5V - 12V@500mV/step
SFCP: 5V/9V/12V

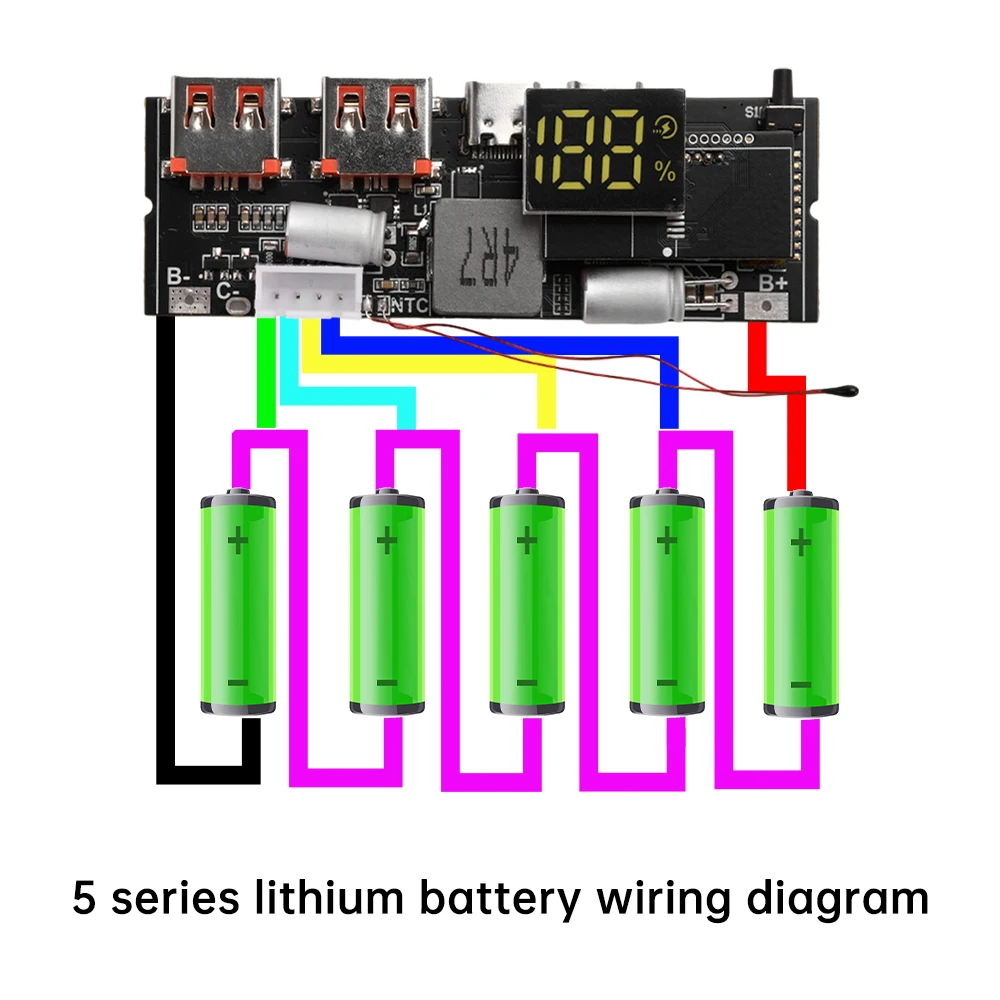

The motherboard must be connected to the battery according to the wiring diagram shown. If the battery has its own protection board, you only need to connect the positive and negative poles of the battery to the B+ and C- solder pads on the motherboard. Otherwise, if the motherboard has integrated protection, you must wire according to the diagram and connect the equalization wire, otherwise it cannot be activated and used normally!!!

Precautions:
1. The wire connecting the motherboard to the external battery must be able to pass a current of 10A. Use copper wire with a cross-sectional area of at least 1 square millimeter. For ordinary wires, use 1.5 square millimeters. It doesn't need to be too thick, but it can't be too thin either. If it's too thin, there will be safety hazards. (Because the current at the battery end is large.) It is recommended to use wires of 16AWG specification.

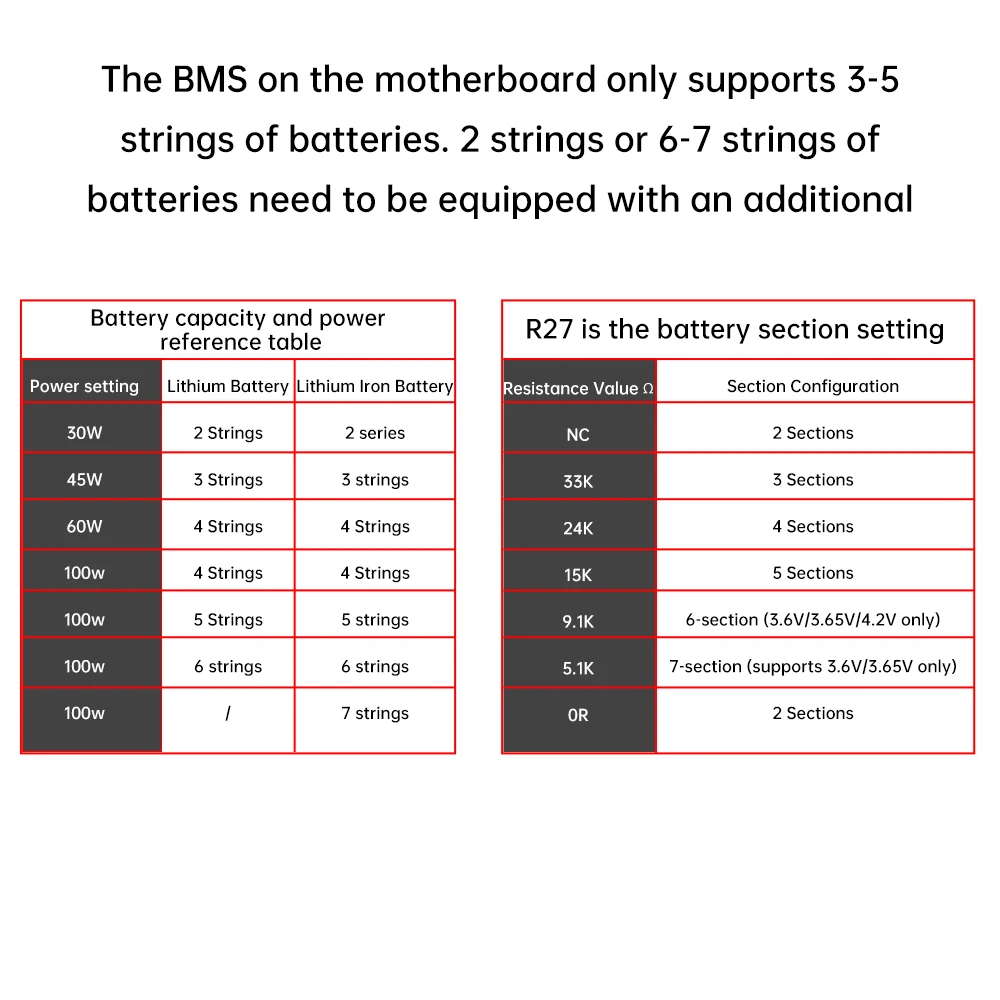

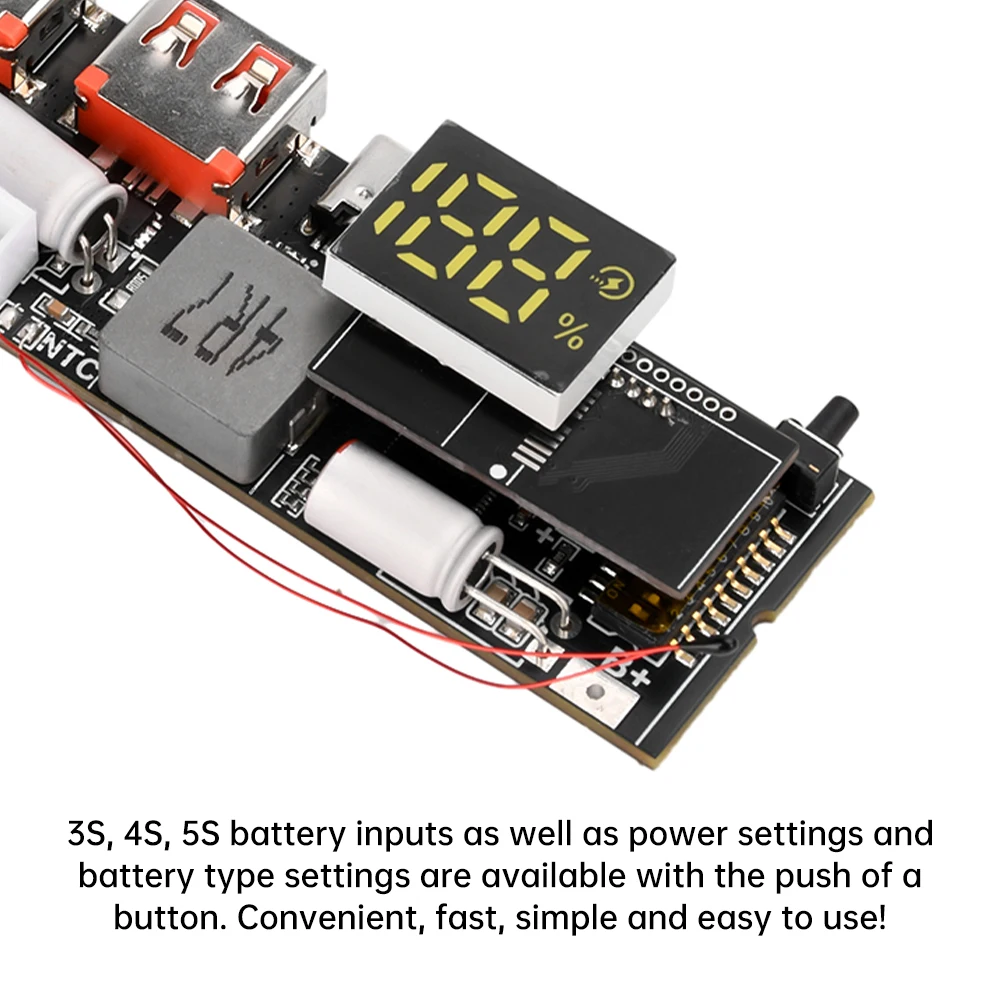

2. The motherboard has its own protection chip and only supports 2 - 5 series-connected batteries. For 6 or 7 series-connected batteries, the battery must have its own protection board, and the over-current protection current of the self-provided protection board must be greater than 15A, otherwise it cannot work normally and may even damage the motherboard chip seriously.
3. Due to the large current at the battery end, you must use thick wires to solder to the battery for testing. You can't use alligator clips to clamp the solder pads for testing charging and discharging.
4. It supports OPO flash charging and HW super fast charging. Different protocols have different powers. 65W and 100W refer to the power of the PD protocol, VOOC is 20W and SCP is 22.5W. Please confirm your needs before purchasing. Returns due to the inability to fast charge your mobile phone because it's not supported are not accepted. Items that have been welded are not supported for return or exchange. (The reason why some mobile phones are not supported is that their own charging protocols are not publicly available and cannot be used by third parties.)
5. The batteries connected to this motherboard must meet the requirements and be connected in series.

Package List:
Power Bank Module * 1
15cm Equalization Wire * 1
