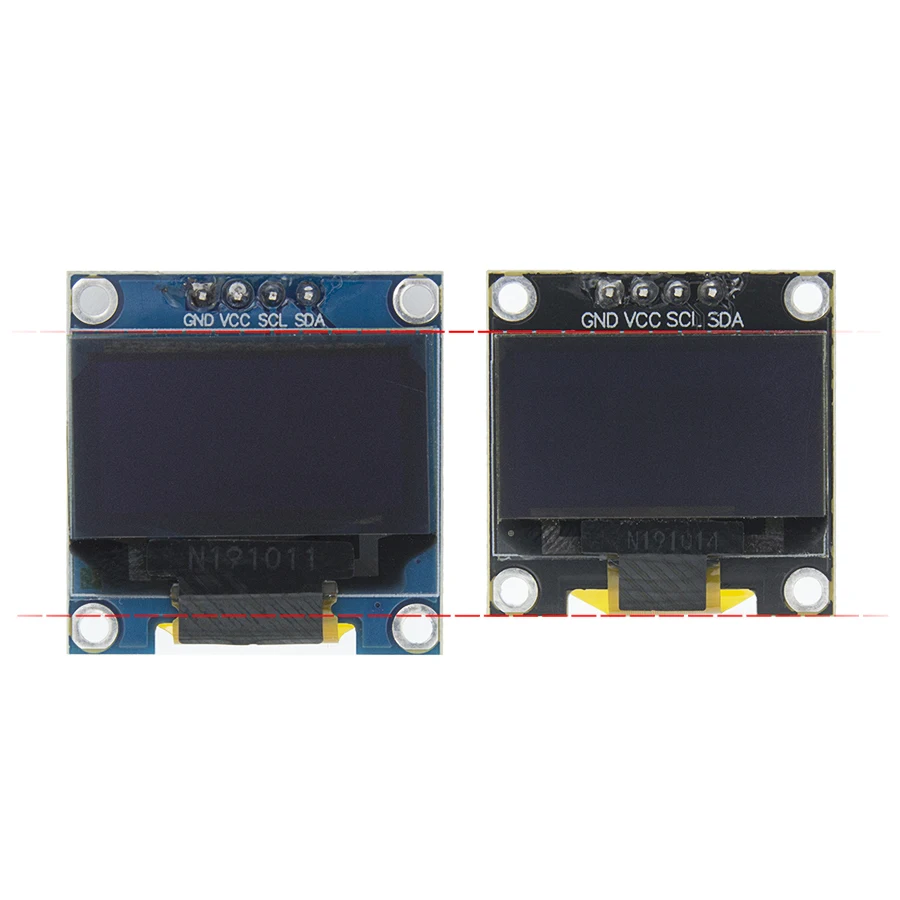

0.96 inch IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board GND VCC SCL SDA 0.96" for arduino oled
0.96 inch IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board GND VCC SCL SDA 0.96" for arduino oled
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: AITEXM ROBOT
Choice: yes
Display Mode: 999
Hign-concerned Chemical: None
Model Number: 0.96
Origin: Mainland China
Resolution: 128*64
Type: Other
is_customized: Yes
128*64 LED display module for Arduino, supports many control chip.
Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ~ 70
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306
